Tissue: Mouse Colon and Brain Prepared Microscope Slides

Tissue Slides for Fluorescent Microscope Setup, Calibration, and Performance Validation

OptiSlides Tissue Slides are high-performance fluorescent reference slides designed to support microscope setup, troubleshooting, and system validation across a wide range of light microscopy platforms. Developed by scientists, for scientists, these tissue slides combine rich biological complexity with crisp, multi-channel fluorescence for accurate performance assessment and demonstration of imaging capabilities.

Designed for Real-World Imaging Performance

Our standard tissue slide features mouse colon, available in 4-colour, 4-channel and 6-channel configurations (including Near Infrared fluorophores for 735–785 nm laser lines). The sample is stained to highlight:

• DAPI (nuclei, blue)

• PGP9.5 (neurons, green)

• White blood cells (magenta)

• Blood vessels (cyan)

The resulting image, shown here as a maximum intensity projection from a laser scanning confocal microscope (10x objective), captures biologically relevant structures in stunning detail.

6-Channel Near Infrared (NIR) Variants Available

OptiSlides are also available in 6-channel configurations incorporating Near Infrared (NIR) fluorophores, extending performance validation into longer wavelengths for advanced multiplex imaging and spectral separation.

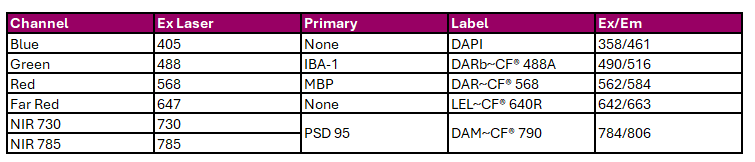

Mouse Colon 6-Channel NIR

Channels and Targets Include:

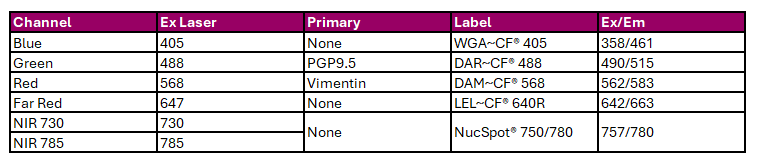

Mouse Brain 6-Channel NIR

Channels and Targets Include:

These variants are designed to support:

• Chromatic integrity assessment across visible and NIR channels

• Depth penetration validation

• Accurate image registration in X, Y, and Z

• Multi-channel alignment and bleed-through evaluation

Validated for use on NIR-enabled fluorescence microscopy systems, including confocal and widefield platforms.

Microscopy Applications

OptiSlides Tissue Slides are compatible with nearly all major light microscopy platforms, including:

• Laser Scanning Confocal

• Spinning Disk Confocal

• Multiphoton

• Widefield and Brightfield

• STED Super-Resolution

• Darkfield and Polarised Light Systems

These slides are ideal for:

• Validating filter sets and camera settings

• Assessing chromatic fidelity and image registration (X, Y, Z planes)

• Demonstrating multi-channel and spectral imaging capabilities

Tissue Thickness Options

• Standard thicknesses: 100 μm and 200 μm

• Ultra-thick samples: Up to 400 μm (available in 2-colour format by request)

• Mounted in VectaShield Plus liquid medium using double-sided adhesive spacers

• Covered with a #1.5 coverslip, sealed with polish or sealant

These thick tissue sections provide an excellent model for testing optical sectioning, depth penetration, and Z-stack acquisition capabilities on advanced imaging systems.

Reusable and Easy to Maintain

• Gently blot immersion oil using Kimwipes® or lens paper

• Clean with 70% ethanol using a cotton-tipped applicator

• Takes just a minute, leaving the coverslip clean and ready for re-imaging

 Enquire below to request a quote or more information.
